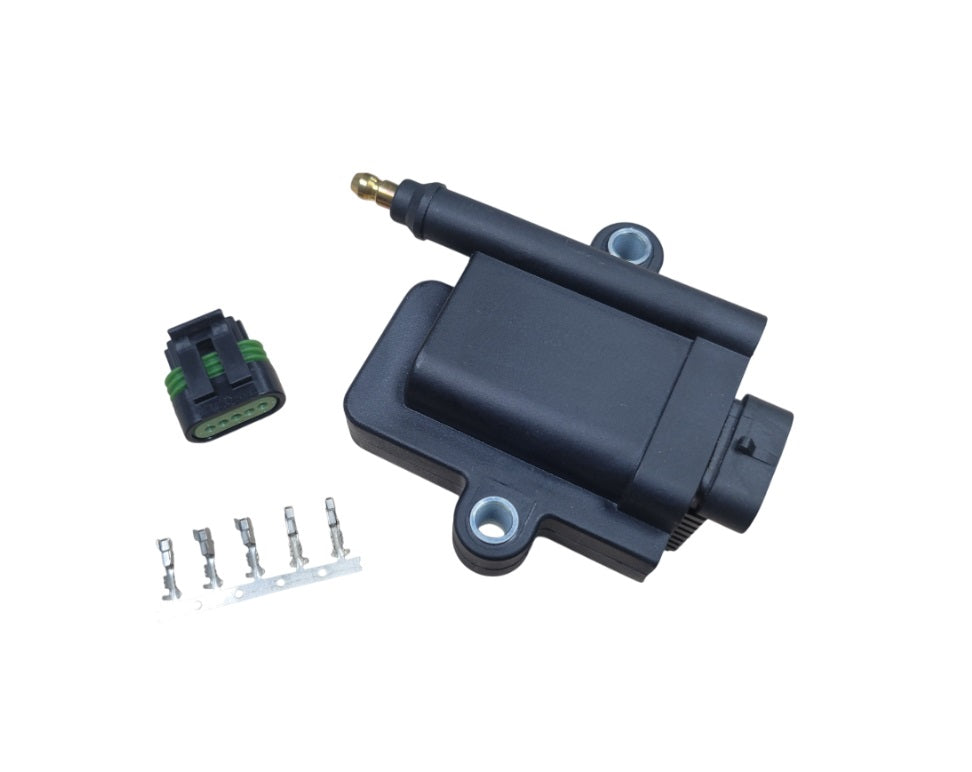

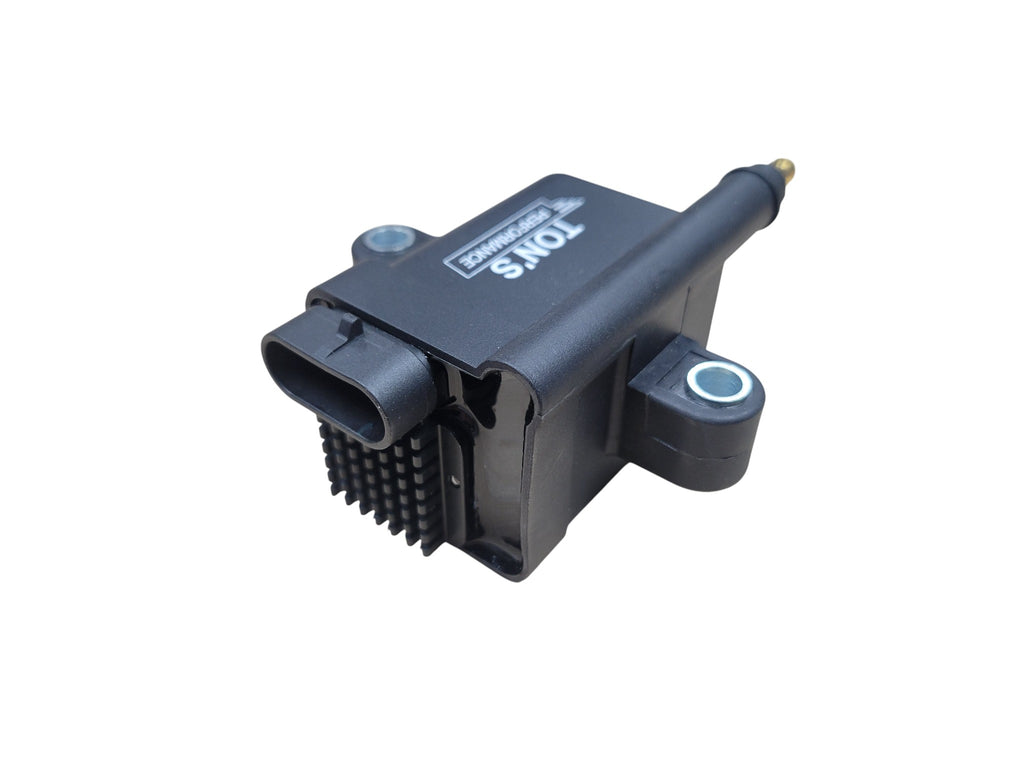

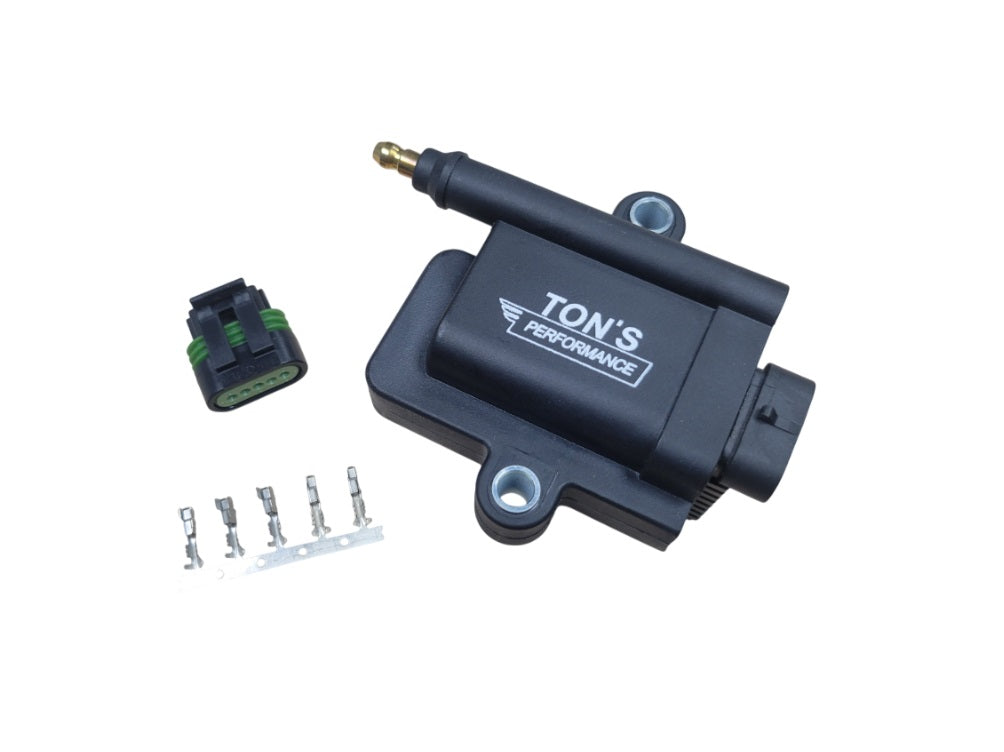

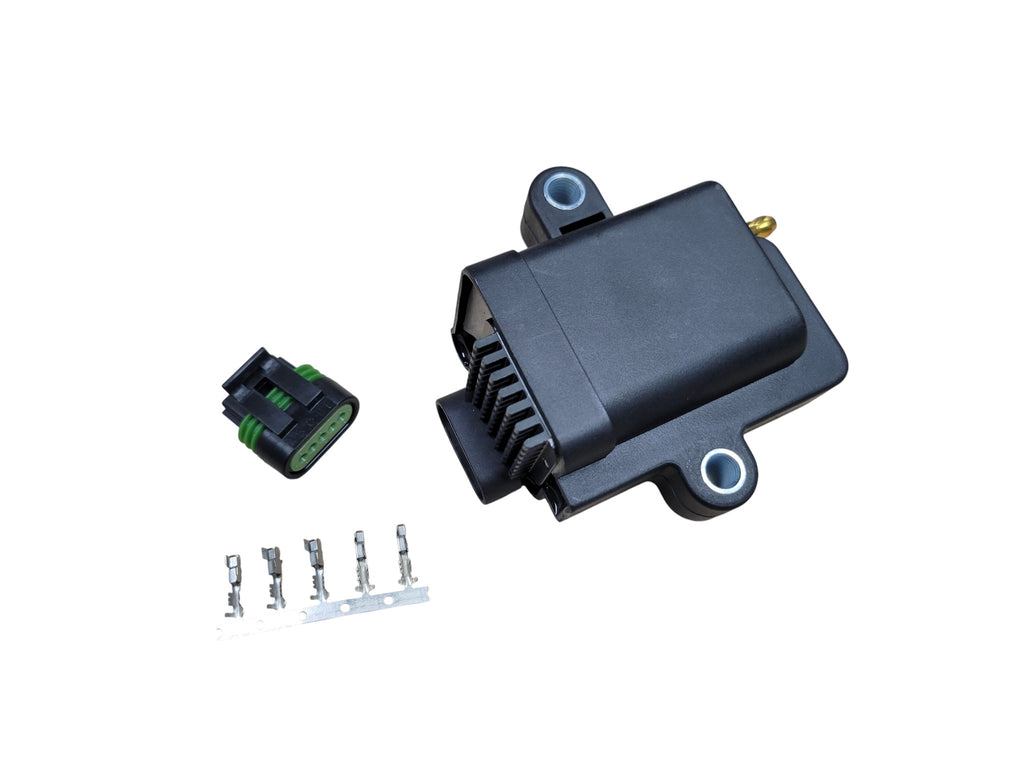

(1) BRAND NEW IGN1A Smart Ignition Coil Kits includes (1) coil, pins, and connector.
High-Output Inductive Coils each deliver over 100mJ of spark energy and a minimum of 40,000 Volts—as much as most CDI systems, without the need for a CDI module! They also provide very long spark duration at full energy, unlike CDI systems and multiple spark systems which fire off small spark events prior to and after its CDI burst to mimic longer spark duration. The full energy delivery and long duration of the High-Output Inductive Coils eliminate the need to compromise energy or duration with your ignition system, and will increase performance in high-boost or high compression engines..
WHY YOU WANT ONE
High-Output Inductive Coils deliver CDI-like spark energy with the long duration of an inductive coil, and easily install in place of your exiting coils without the need to add a CDI. These coils are constructed to operate in harsh environments. They are shock and weatherproof, allowing them to be mounted virtually anywhere. They are affordable—less than the cost of aftermarket LS1 coils—and deliver World Class performance.
RACER FEATURES
- CDI-like spark energy without the need for a CDI
- Less expensive than aftermarket LS1 coils
- Robust construction allows them to be mounted almost anywhere
- Available for vehicles with or without external igniters
TUNER FEATURES
- Massive Spark Energy, up to 118 mJ! (103 mJ 30-2853, 118 mJ 30-2852)
- Incredibly long spark duration, up to 3.2mS! (2.9 mS 30-2853, 3.2mS 30-2852)
- Up to 41kV Output Voltage, without a CDI! (40kV 30-2853, 41kV 30-2852)
- Weather and Shockproof design
- Can be mounted directly to the Engine
TECHNICAL SPECIFICATIONS
- Output (no load): 40kV minimum
- Output (50pF load): 40kV +/- 10% (PN 30-2853), 41kV +/- 10% (PN 30-2852)
- Output Energy: 103 mJ +/- 7% (PN 30-2853), 118 mJ +/- 7% (PN 30-2852)
- Peak Secondary Current: 102 mA +/- 10% (PN 30-2853), 100 mA +/- 10% (PN 30-2852)
- Arc Duration: 2.9mS +/- 10% (PN 30-2853), 3.2mS +/- 10% (PN 30-2852)
- Turns Ratio 71:1
- Maximum Current: 19 Amps
- Maximum Battery Voltage: 17 Volts
- Base Dwell: 3.0 mS
- Max Continuous Dwell: 9 mS but don’t exceed 40% duty cycle
- Max Intermittent Dwell: 80% duty cycle, 5 seconds maximum
- Mating Connector: Packard/Delphi 12162825 “Pull to Seat” (PN 30-2853), Packard/Delphi 12162182 (PN 30-2852)
- Mating Contacts: Packard/Delphi 12124075 “Pull to Seat”
- High Tension Wire Terminal: HEI “spark plug top” Style
- Interchangeable part with AEM 30-2853 / HOLLEY 556-112 / MSD 82893
