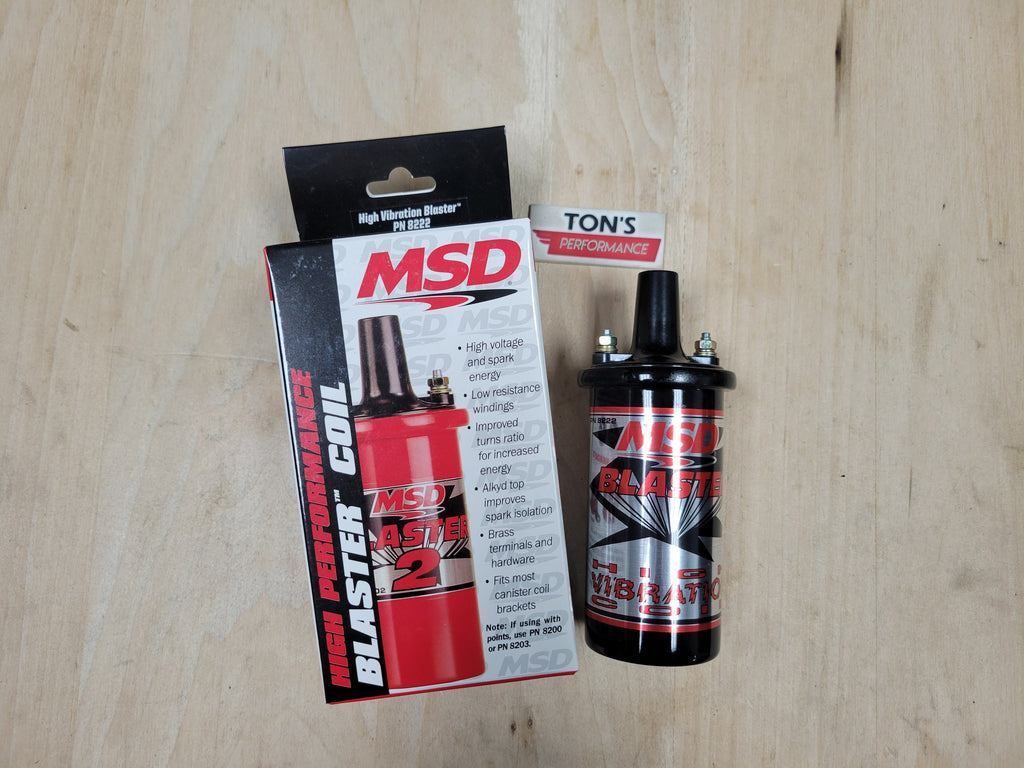

MSD Ignition Coil 8222 Blaster High Vibration Black 45000 Volts Canister Socket Type
Ignition Coil Model or Series: Blaster High Vibration
Coil Type: Canister
Maximum Voltage: 45,000 Volts
Primary Resistance: .7 Ohms
Secondary Resistance: 4.5K Ohms
Coil Wire Attachment: Points (Socket)
Height: 6.000"
Diameter: 2.125"
Finish: Black
Internal Construction: Epoxy Filled
Primary Inductance: 8 mH
Turns Ratio: 100:1
Includes Mounting Bracket: No
Includes Ballast Resistor: No
Includes Hardware: No
Quantity: Sold As Each
- Encased with epoxy to protect windings from high vibrations
- Improved output coil for electronic ignitions and MSD Ignitions
- 100:1 Turns Ratio
- Lower Primary Resistance Produces High Voltage Output
- CARB E.O. Approved
If you are looking to upgrade your stock coil or want to compile men the performance of your MSD 6-Series Ignitions, our blaster coils are the right choice. The sturdy metal housing of the high vibration coil is completely potted with a premium grade epoxy to completely encase the coils primary and secondary windings. This protects the coils internal components from high and low frequency vibrations that are commonly experienced in racing.
